$795.00

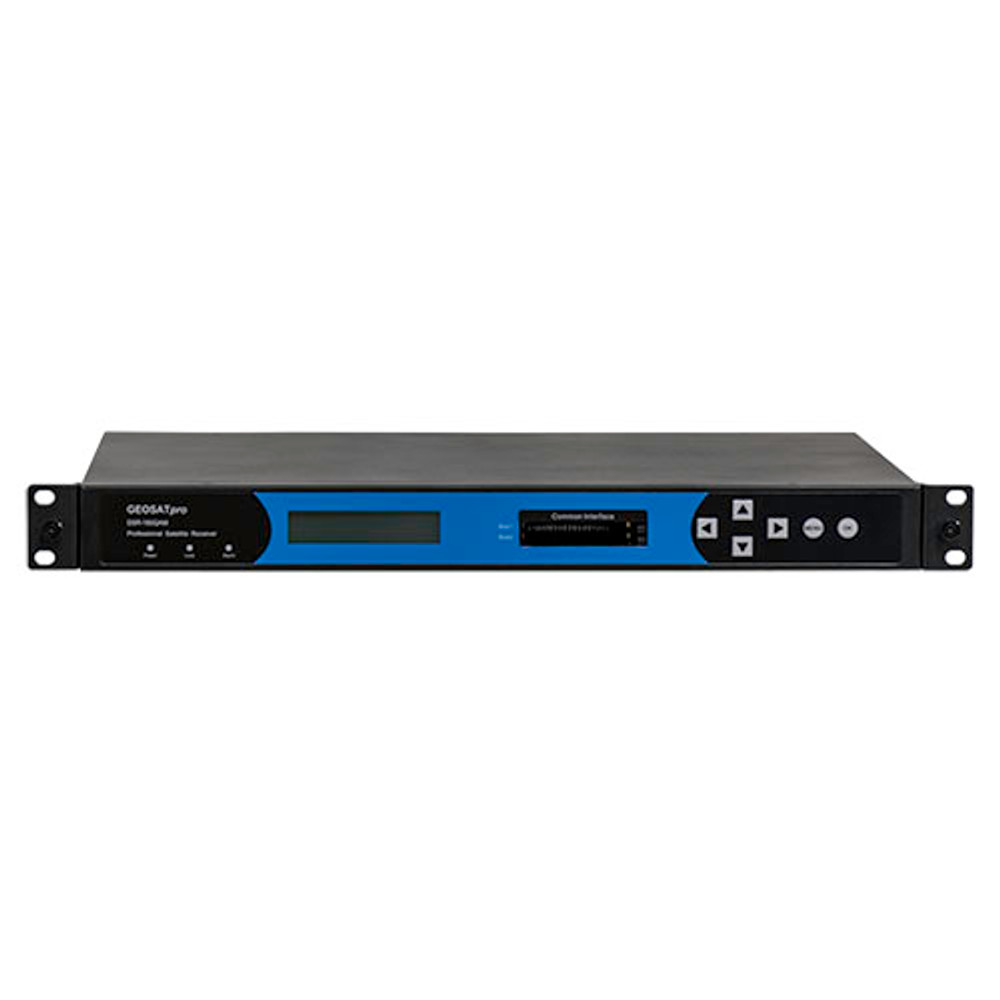

RECEIVER - GEOSATpro DSR160SDI RACK MOUNT IRD WITH SDI

Current Stock:
Weight: 8.50 LBS
Shipping Cost: $39.00 (Fixed Shipping Cost)

The GEOSATpro DSR160SDI IRD integrated receiver decodes both high definition and standard definition video. The DSR160SDI is capable of receiving signals from variable program sources including DVBS, S2, DVB-ASI, QPSK, 8PSK and support for 4:2:0 chroma. Output interfaces include CVBS, COMPONENT, HDMI, HD/SDI. - Please choose upgraded DSR180ASI or DSR180QAM model to include additional features. (NOTE: check DSR160ASI for ASI I/O capacity)

The DSR160SDI has 2 common interface slots capable of decrypting multiple channels. With the LAN control and monitoring function by remote web-based management and front panel controls, this user-friendly decoder is ideal for signal conversion and distribution for SD or HD-based digital video head-end system.

Discounts Available for broadcasters and system integrators on quantity purchases. Please contact us to quote your project.

Features:

  • Fully compliant with H. 264/MPEG-4-AVC HP@L4, MPEG-2 MP@HL, MPEG-2 MP@ML and DVB-S/S2 and support for 4:2:0 chroma
  • 2 Common Interface (CI) for descrambling major CAS including Irdeto, Viaccess, Conax, Mediaguard, Nagravision, Comvenient / Betacrypt, CTI, etc.
  • Compatible with Multi-decrypt CI Modules
  • BISS and BISS-E decryption
  • Program filtering support
  • Closed Captioning via EIA-608, VBI teletext and DVB subtitle processing (note full EIA-708 support on SDI output is available in DSR180ASI model)
  • Support NTSC, PAL and SECAM
  • Component Y-Cr-Cb and Composite CVBS output
  • HDMI output
  • Two pairs of XLR balanced audio outputs
  • HD / SD SDI video output with digital audio embedded (two APID)
  • Full control via front panel or Network Management Software (NMS)
  • Preset Channel List
  • Automatic channel change between two channels
  • Software upgradeable via NMS


Click on image below to download Larger image of a Rear Panel:

DSR160SDI Rear Panel
Specifications:


 DVB-S / S2 Inputs
Constellation:  QPSK, 8PSK
Symbol Rate:  1-45 Mbps
FEC:  All rations compliant with standard
Signal Level:  -65 ~ -25 dBm

 Conditional Access
Interface:  2 x CI slots
CA Methods:  Multicrypt, Simulcrypt
CAS:  Conax, Irdeto, Viacess, Nagravision, etc.

Video / Audio Outputs
CVBS, Component:  4 BNC connectors
HDMI:  1 x HDCP, 480i, 720p, 1080i, 1080p
HD/SD-SDI:  2 x with embedded digital audio
Audio:  2 x XLR pairs for balanced and 2 x BNC for unbalanced audio

Video and Audio Decoding
Video decoding formats:  MPEG-2 and MPEG-4, H.264, SD and HD
Video formats:  480i, 480p, 576i, 720p, 1080i, 1080p59, 1080p60
Analog output:  PAL, NTSC, SECAM
Audio decoding: MPEG1 Layer II
Dolby Digital (AC-3)
Dolby Digital Plus (E/AC-3)
AAC (MPEG2, MPEG4/HE v1,2 ,MPEG4/LC
Control & Monitoring
Local:  Front panel operation – LCD display, Control keys
Remote:  Remote Web-based management via Ethernet (TCP/IP)
Physical & Power
Input Voltage:  AC 90V ~ 240V, 50/60 Hz
Power Consumption:  30W
Dimensions: 1 RU 19 inch rack
19” (W) x 10.8” (D) x 1.7” (H)
484mm x 274mm x 44mm
Weight:  8.14 lbs. (3.7 Kg.)
Certifications:  FCC, CE, RoHS


Click here to download DSR160SDI HD-IRD Manual.pdf



Click here to download GEOSATpro DSR160SDI HD-IRD Extended Spec Sheet
