$70.00

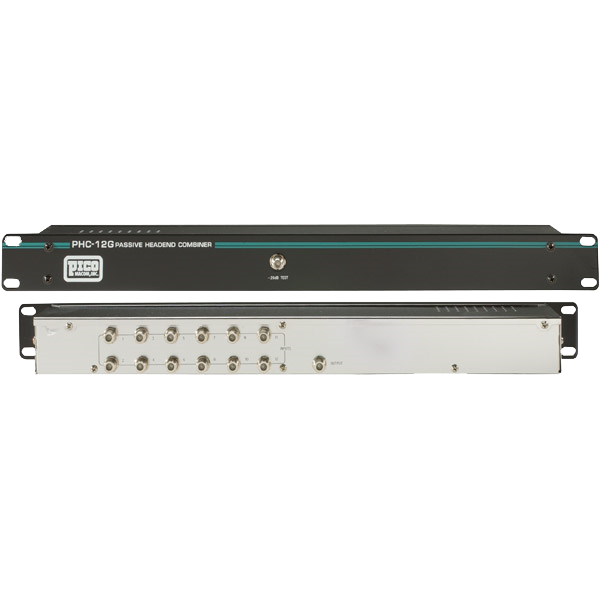

COMBINER - PASSIVE 12CH COMBINER - PHC-12G

Current Stock:
size: 19.00 W × 1.75 H × 3.00 L
Weight: 2.50 LBS
Shipping Cost: $18.50 (Fixed Shipping Cost)

The Pico Macom PHC-12G is a high quality 1GHz Broadband, Rack Mount, Passive, Headend 12 Channel Combiner. A combiner is used to combine multiple modulated channels for distribution to multiple TVs.

  • 165 Channel Frequency Range 5 - 1000MHz (CATV T7 - 13, 2 - 13, A1 - A5, A - ZZZ, 89 - 158)
  • High -30dB port-to-port isolation provides spurious carrier rejection and minimizes undesired channel interaction, thereby reducing picture distortion
  • Passive design allows full bi-directional flexibility for two-way digital and analog requirements
  • Directional coupler design and low insertion loss provide improved carrier to noise, system performance and picture quality
  • -20dB test port provides convenient access for headend testing and system monitoring


Specifications:
Bandwidth: 5 - 1000MHz
Isolation (opposite ports): 40dB
Isolation (adjacent ports): 30dB
Insertion Loss (max):  -18dB
Test Point Loss: 20dB
Input Connector Type: 75Ω F-Female
Output Connector Type: 75Ω F-Female
Dimensions: 19˝(L) x 3˝(D) x 1.75˝(H)
Weight: 2.5lbs
